ODZ-Type Water Deironing Units – An Effective Solution for Clean and Safe Water.
ODZ-type water deironing units are designed for water treatment, particularly for removing turbidity and iron compounds present in water in various forms. Using untreated water can lead to contamination of the installation with iron deposits.
The deironing process is carried out by aerating the water using an aspirator installed between the pump and the pressure tank, along with a spray nozzle located inside the tank. The water then passes through the filter media contained in the deironing unit. During the backwash cycle, contaminants are automatically removed, and the filter media restores its full effectiveness.
The filter media is not intended for nitrate removal and does not affect the bacteriological quality of water. Precipitated iron compounds are retained in the filter media and removed during the backwashing process.
Advantages of ODZ Water Deironing Units:
• High-quality workmanship
• Exceptional durability
• Safe for use and contact with drinking water (PZH Certificate)
• High efficiency
ODZ water deironing units are hot-dip galvanized inside and out.
They can only operate with galvanized tanks, e.g., HVP / HVP SLIM / HVP L – horizontal.
Deironing Unit Construction

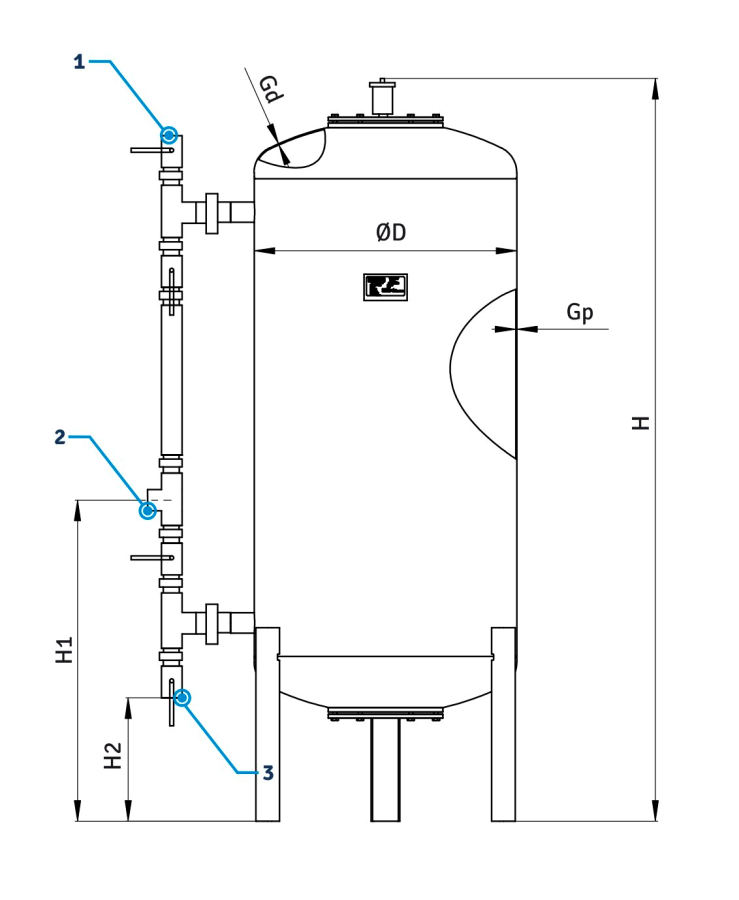

ODZ Construction
|
|
Description |
|
|
1. |
Flush Water Outlet | |
|
2. |
Inlet of Iron‑Rich Water |
|
|
3. |
Deironed Water Outlet |
|
Quartz Sand Bed
| Particle Size [ø mm] |
Weight [kg] | |||
| ODZ 150 | ODZ 300 | ODZ 500 | ||
| A | 0,8-1,4 | 100 | 150 | 300 |
| B | 1,4-2,2 | 50 | 50 | 100 |
| C | 3-5 | 50 | 150 | 200 |
Deironing Unit Technical Data
|
Deironing Unit |
Volume. |
Water Inlet & |
Ø D |
H |
H1 |
H2 |
Gp |
Gd |
Max Pressure |
T./min |
T./max |
Flow Rate |
Backwash |
Tank Weight |
Tank Weight |
|
[l.] |
[mm] |
[bar] |
[oC] |
[ m3/h] |
[kg] |
||||||||||
|
ODZ 150 |
150 |
G 1" |
390 |
1695 |
635 |
295 |
2,0 |
2,5 |
6 |
6 |
20 |
2,0 |
4,0 |
52 |
252 |
|
ODZ 300 |
300 |
G 1¼" |
550 |
1540 |
630 |
265 |
2,2 |
3,5 |
6,0 |
70 |
420 |
||||
|
ODZ 500 |
500 |
G 1½" |
750 |
1610 |
725 |
310 |
2,5 |
3,0 |
6,0 |
10,0 |
108 |
700 |
|||
Example Diagram of a Water Installation with an ODZ Water Deironing Unit
1 - Pump, 2 - Hydrophore Tank HVP, 3 - Iron Removal Unit ODZ, 4 - Aspirator, 5 - Spray Nozzle, 6 - Air Release Valve, 7 - Shut-off Valve, 8 - Blind Plug, 9 - Check Valve, 10 - Pressure Switch LCA.
ASPIRATOR
SPRAY NOZZLE
Definitely yes. Without a water analysis, it is not possible to properly select the iron remover, the filter media, or the aeration system.
