Hydrophore Systems
The ASG.5 hydropneumatic system is a complete solution for water supply systems, maintaining stable pressure within a precisely defined range while keeping electricity consumption low. It is widely used in water installations for residential buildings, public facilities, and industrial plants.
Typical applications:
• Single-family and multi-family homes
• Irrigation systems
• Industrial and commercial installations
• Utility buildings
• Horticulture and orchards

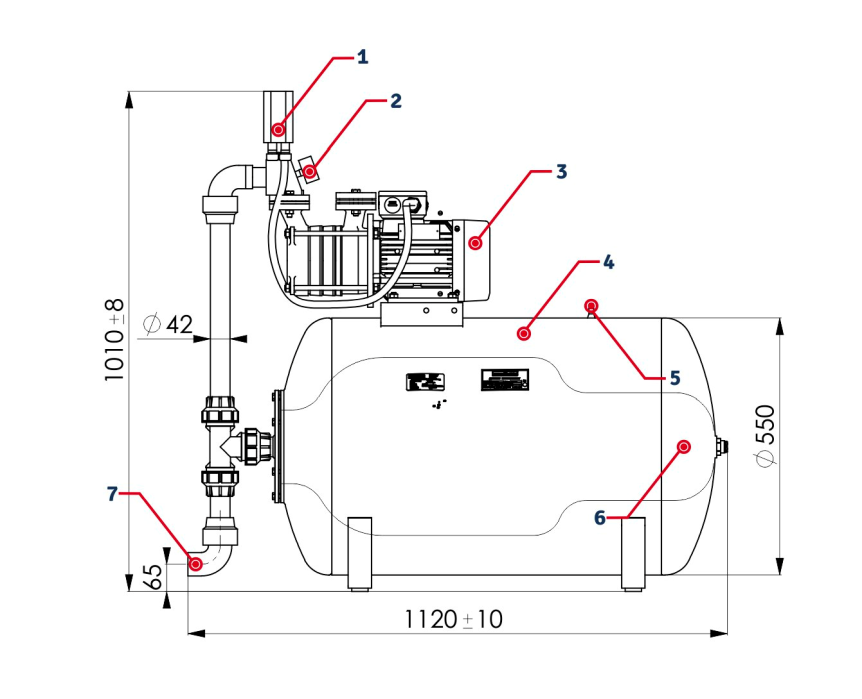

Hydrophore System Construction
Description
|
1. |
Pressure Switch |
|
2. |
Pressure Gauge |
|
3. |
Self-Priming Pump |
|
4. |
Diaphragm Pressure Tank |
|
5. |
Air Valve |
|
6. |
Tank diaphragm |
|
7. |
Inlet/Outlet Connection 1¼" Thread |
Hydrophore Systems Technical Data
| Product ID | Tank | Pump | Motor | Usable Water Volume [l/cykl] |
LCA.2 Switch Setting [MPa] |
|||
| Volume [l] |
Type | Flow Rate [m3/h] |
Power [kW] |
Voltage [V] |
Weight [kg] |
|||
| ASG.5.10.1 | 200 | SM.4.02.1150 | 3,4 ÷ 4,4 | 1,5 | 230 | 80 | 54,0 | 0,25 ÷ 0,40 |
| ASG.5.10.2 | 200 | SM.4.02.1150 | 400 | 77 | ||||
| ASG.5.10.3_Z | 200 |
SM.4.02.1150 |
78 | |||||
Yes. It reduces the number of pump start cycles, which decreases wear on the pump motor.
